    180-264VAC Rainproof LED Power Supply 25A 300W 12V Transformer

    Ask Lasest Price
    Brand Name : HX
    Model Number : HXF-300GB-12
    Certification : CE, CCC, ISO9001:2015
    Price : 1-18USD
    Payment Terms : T/T
    Supply Ability : 8 Production lines, 20000PCS each day
    Delivery Time : Regular stock for ready delivery with our brand
    • Product Details
    • Company Profile

    180-264VAC Rainproof LED Power Supply 25A 300W 12V Transformer

    Hottest GB Rainproof 12V 25A LED Driver, DC 12V 25A LED Power supply for LED lights, AC 180-264Vac, DC 12V 25A 300W


    Item Name:


    Hottest GB Rainproof 12V LED Driver,

    Hottest GB Rainproof 12V 25A LED Driver, DC 12V 25A LED Power supply for LED lights,

    AC 180-264Vac, DC 12V 25A 300W

    DC 12V 25A LED Power supply for LED lights


    1). Basic Sepcifications

    ModelSize/mmInputOutputOutput CurrentWarranty
    HXF-300GB-12201×115×55AC 180~264VDC 12V33.3A3 Years

    2). Technical Characteristics


    ModelHXF-300GB
    12V
    OutputDC Voltage12V
    Current Range0-33.3A
    Ripper and Noise200mVp-p
    Volt. Accuracy12V±5%, 24V±5%
    Linear regulation±0.3%
    Load regulation±0.5%
    InputAC Voltage range180~264VAC
    PC Factor Typ0.6
    Efficiency Typ≥86%
    AC Current (180VAC)4.0A
    AC Current (240VAC)4.5A
    Inrush CurrentCold start 100A/240V AC
    Leakage Current<3.5mA/240VAC
    Over-load110%-130% of rated power
    ProtectionsShort circuitProtection mode: auto recovery after short circuit faults removed
    Over-voltage <15V >29V
    Protection mode: shot off output voltage, restart to recovery
    EnvironmentWork Temp.-25~40℃
    Work Humidity20%-90% RH no condensation
    Storage Temp.-25~80℃
    Vibration resistancerevolution 280±10%, 45 mins,X.Y.Z three directions
    Drop test800mm
    SurgeCommon mode 4KV, different mode 2KV
    Safety and EMCSafety standardDesign by standard:GB9254-1998,GB17625.1-2003,
    Withstand voltageI/P-O/P 2KVAC I/P-FG 2KVAC O/P-FG 500VAC
    Insulation resistanceI/P-O/P .I/P-FG .O/P-FG: >100MΩ/500VDC/25℃/70%RH
    EMCDesign by standard: EN55022B, Class B
    Harmonic currentDesign by standard:GB17625.1; EN61000-3-2, -3 limitation requirement.
    ImmunityDesign by standard: EN55024; EN61000-4-2,3,4,5,6,8,11
    MTBF≥30000 hours 40℃
    OthersProduct size198×100×50mm
    Net Weight510g
    Packing (pcs/ctn)36PCS

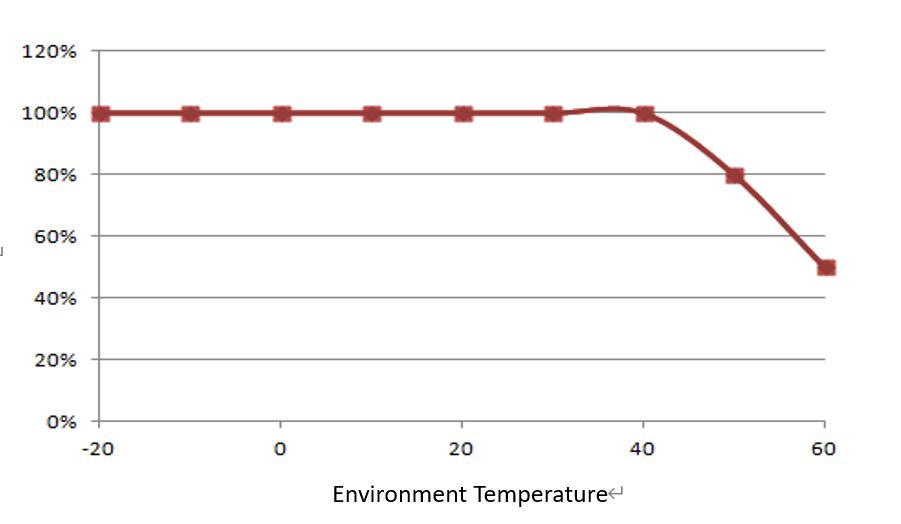

    3). Load and Environment Temperature

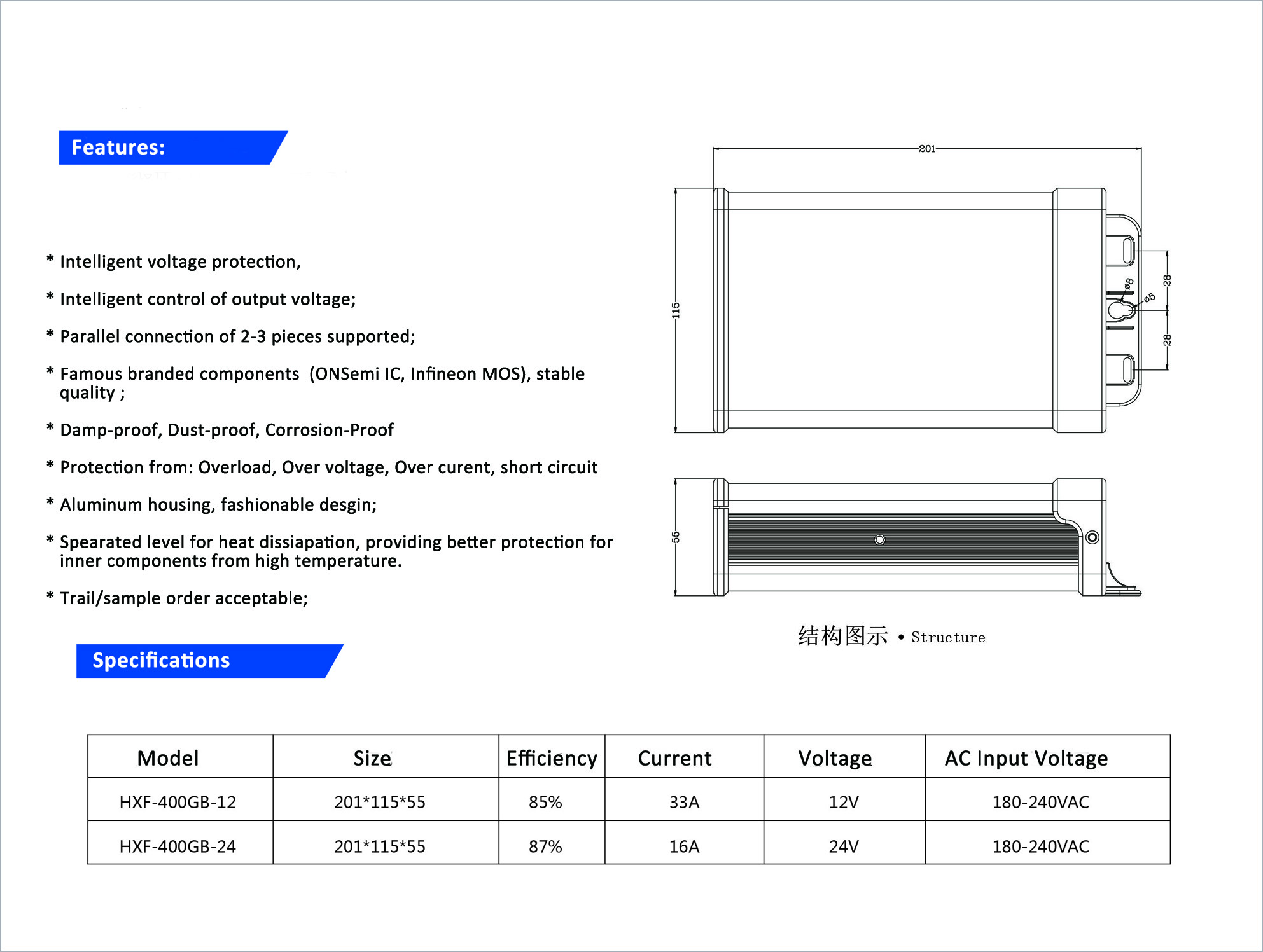

    4) Structurer:

    12V LED DRIVER


    5) Production capacity and quality control


    Our capacityBuilt in 2004, 17 Years experience,
    10,000 square meters factory, 400+ employees,
    8 production lines, 20000pcs/day
    ISO9001:2015 Quality Management System Certified, 7S administration
    50+ Engineer teams, innovative and independent R&D ability
    EMC lab, SMT plant, Advanced machines and test equipment
    Drop test, high-low temperature test, Salt spray test, surge resistance test, Ageing test,Functional test, MTBF test etc.


    5) Company pictures

    led power supply factory

    led power supply factory
