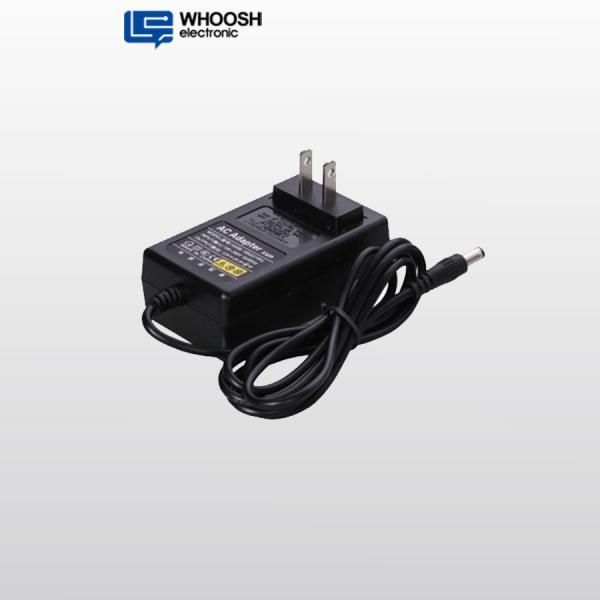

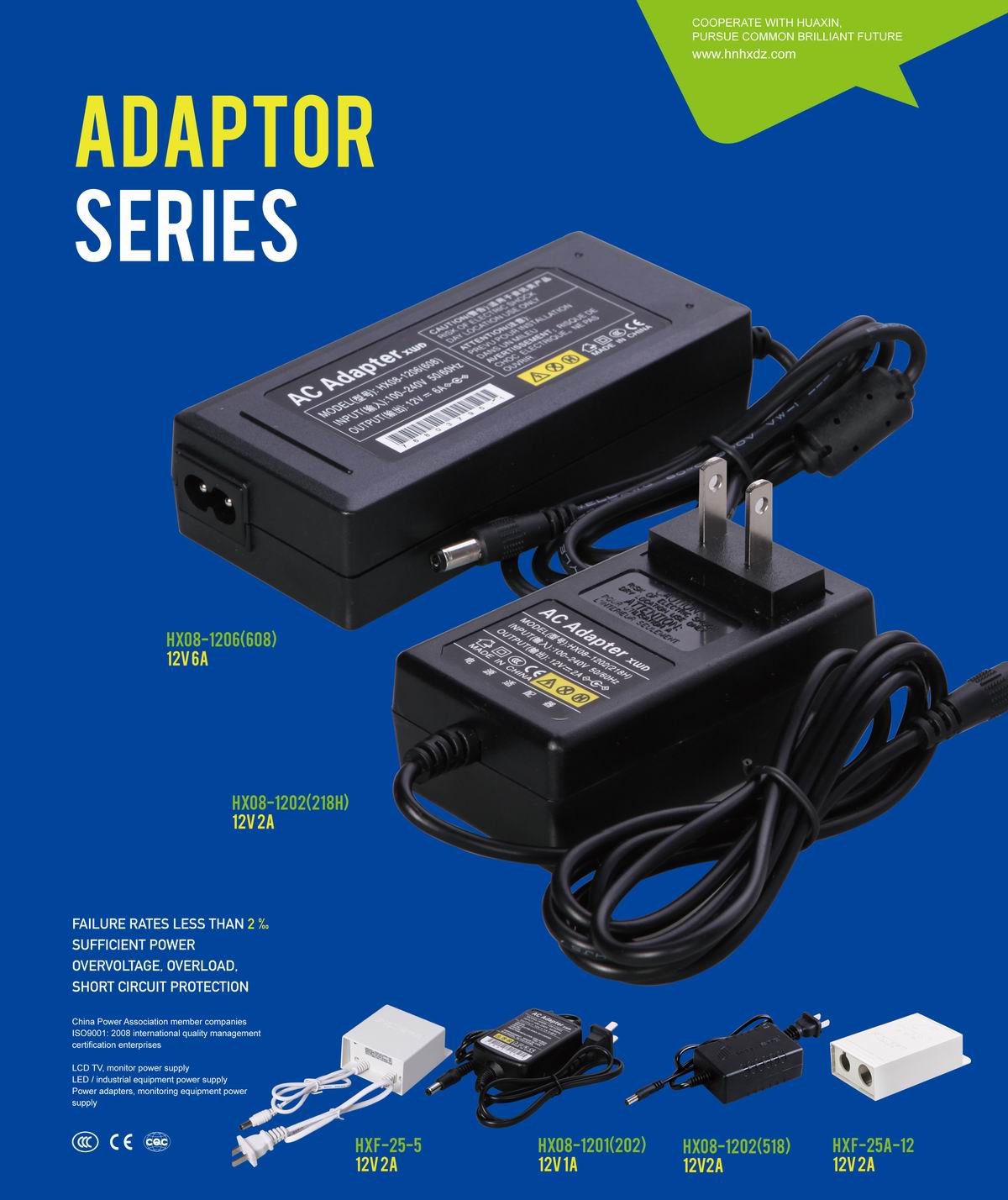

CCTV POWER SUPPLY

Specification

Installation

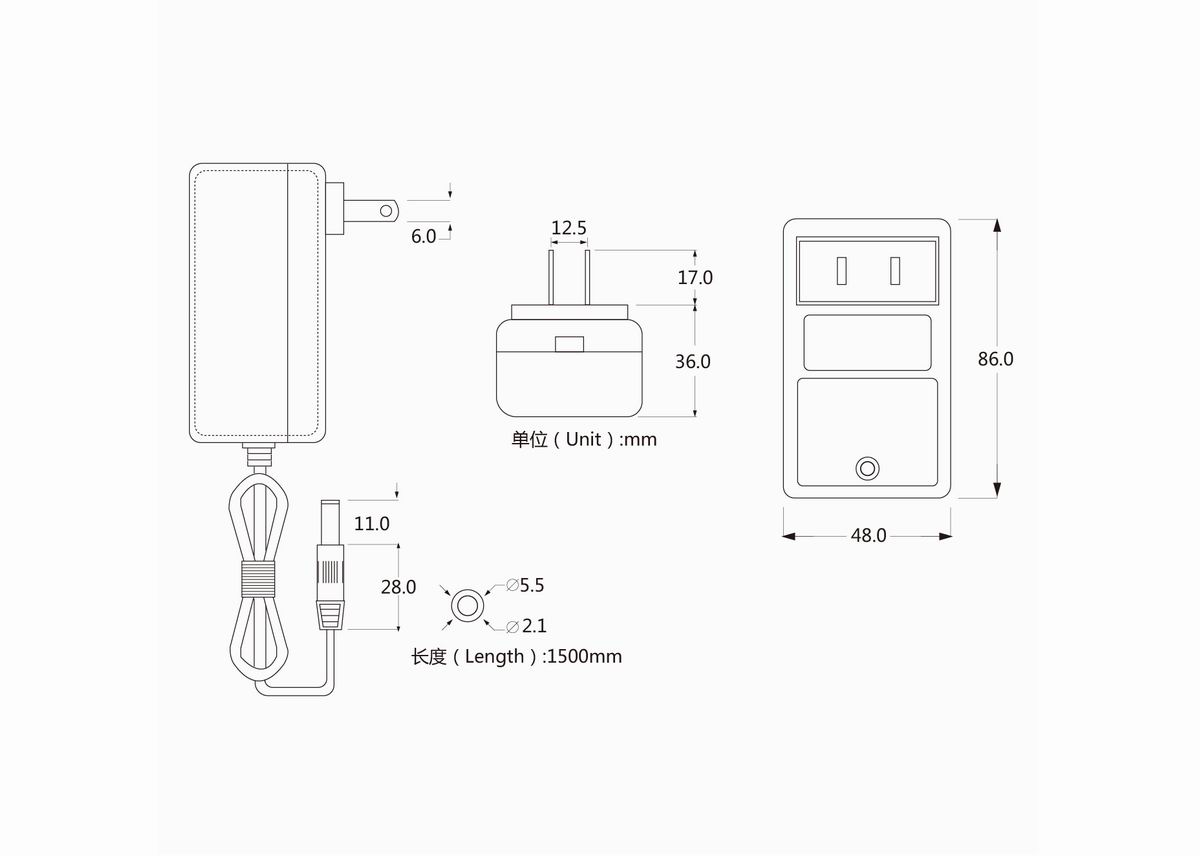

Output socket 5.5*2.1mm, DC power cord 1500mm, input ac plug CN/US/EU type optional

Features
PULSE WIDTH MODULATION SWITCHING CIRCUIT SCHEME:Adopt PWM scheme advanced control chip which is mature and reliable for many years. low loss, high efficiency,low temperature rising. Provide a stable and reliable power solution for CCTV.
MANUFACTURING PROCESS: By applying smd chip technology and smd components,significantly improve product stability, reduce the power

supply's weight.
TRANSFORMER: pure copper winding, secondary winding specially added copper slice as a heat conduction material, effectively control temperature rising
OUTPUT INDUCTOR:More coil turns and higher permeability leads to high inductance.Output inductor using sendust as core material. With high inductance,power supply's size is smaller and weight is lighter.
EMI CIRCUIT:Adopt perfect anti-electromagnetic interference circuit design to meet EMI control requirements and design standard, effectively avoid enviormental electromagnetic interference.
PROTECTION CIRCUIT: With built-in separate overload, short circuit protection circuit to ensure that in case user's system is abnormal, no safety problems occurs, neither damage occurs to the system. Provide stable, reliable and safe power supply to customers.

INPUT CHARACTERISTICS:
Rated Input Voltage:100~240Vac

Rated Input Frequency:50/60Hz

Input Current:0.58Amps max At any input voltage and rated, DC output rated load.

Inrush Current:50 Amps Max. Cold start at 240Vac input, with rated load and ambient 25 ℃ .

AC Leakage Current: 0.25mA Max. at 240 V ac input.

OUTPUT CHARACTERISTICS:

Combined Load/Line Regulation:

Ripple and Noise:

Under nominal voltage and nominal load,the ripple and noise are as follows when
measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected
at testing point.

Turn on delay time:
2 Seconds max.at 115V ac input and output max load.

Rise time:
40 ms max.at 115V ac input and output max load.
Efficiency:
78% min, at 220V ac input voltage and full load calculation efficiency.

Overshoot:
5% max when power supply at turn or turn off.

PROTECTION FUNCTION:

Short circuit protection:

The power supply will be auto recovered when short circuit faults remove.
Over current Protection:
The power supply will be auto recovered when over current faults remove.
Operating Temperature:
-20℃ to 40℃ ,Full load , Normal operation.

Storage Temperature:
-20℃ to 40℃ ,with package..
Relative Humidity:
5%(0 ℃ )~90%(40℃ )RH, Full load, Normal operating.

SAFETY AND EMI REQUIREMENT:

SAFETY:
Design by IEC60950 standard.

DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1500Vac/5mA/60S for type test.
usulation resistance:
Primary to secondary:10MΩ min at 500V DC.
EMI STANDARD
Designed according to the following standards
<1>.Fcc class B rules
<2>.EN55022 class B rules
<3>.GB9254-1998,GB17625.1-2003
