Product Specification:

AC/DC Rainproof 24V Switching Mode Power Supply 400W for LED sign and lighting with Intelligent overload protection

Highlights: Intelligent overload protection, constant voltage, constant current mode.

3 Years Warrant Switching Mode Power Supply 400W For Outdoor Use, IP62 Rainproof Led Power Supply 24v 16.7A For Led Sign

1). Basic Sepcifications

2).Input Characteristics

1. Input Voltage: AC 180-264V
2. Input Frequency: 50/60Hz
3. Input Current: 4A Max (full loaded at the lower limited of input voltage range)
4. Inrush Current: 100 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.
5. Ac Leakage Current: 3.5mA Max. At 240Vac input

3) Output Characteristics

1. Output Current≤16A

2. Line Regulation

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when

measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

4. Turn on delay time: 1 Second Max.at 220Vac input and output Max.load.

5.Rise time:40 mS Max.at 220Vac input and output Max load.

6. Efficiency: 85% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 8% Max.When power supply at turn or turn off.

4) Protection Functions:

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection: auto recovered when over current faults remove.

3. Over load protection: auto recovered when over current faults remove.

4. Over Voltage protection: locked down. restart to recover.

5) Test: Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:

Primary to secondary:1200Vac/10mA/60S for type test.

Primary to case:1200Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003

8). Load and Environment Temperature

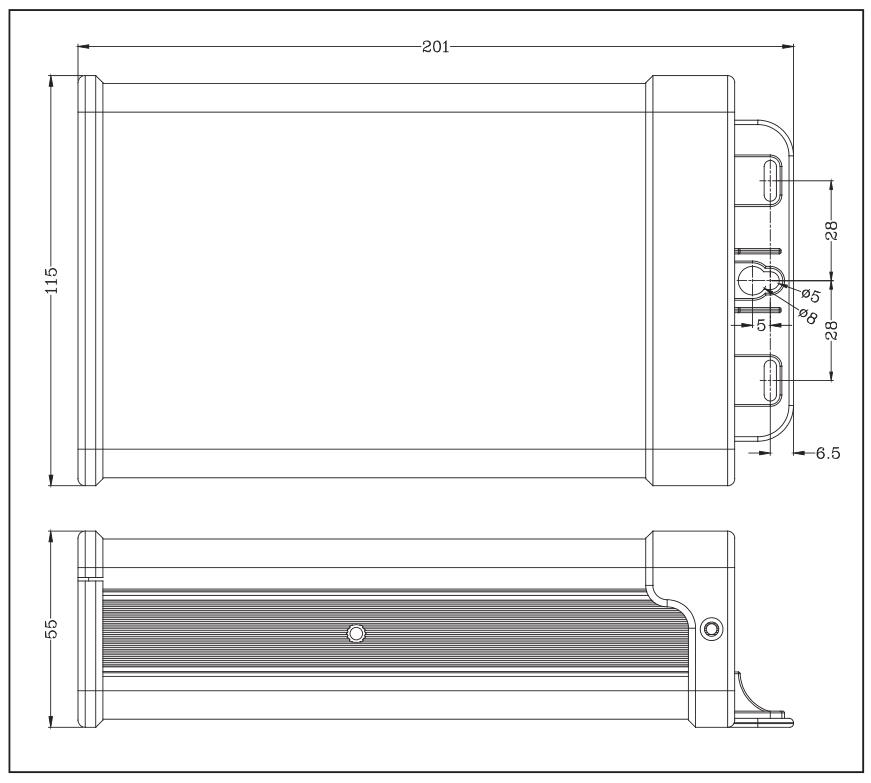

9) Structurer:

10) OEM: Customize label and Inner box

11) Packing details: 20PCS/CTN

12) More product pictures:
